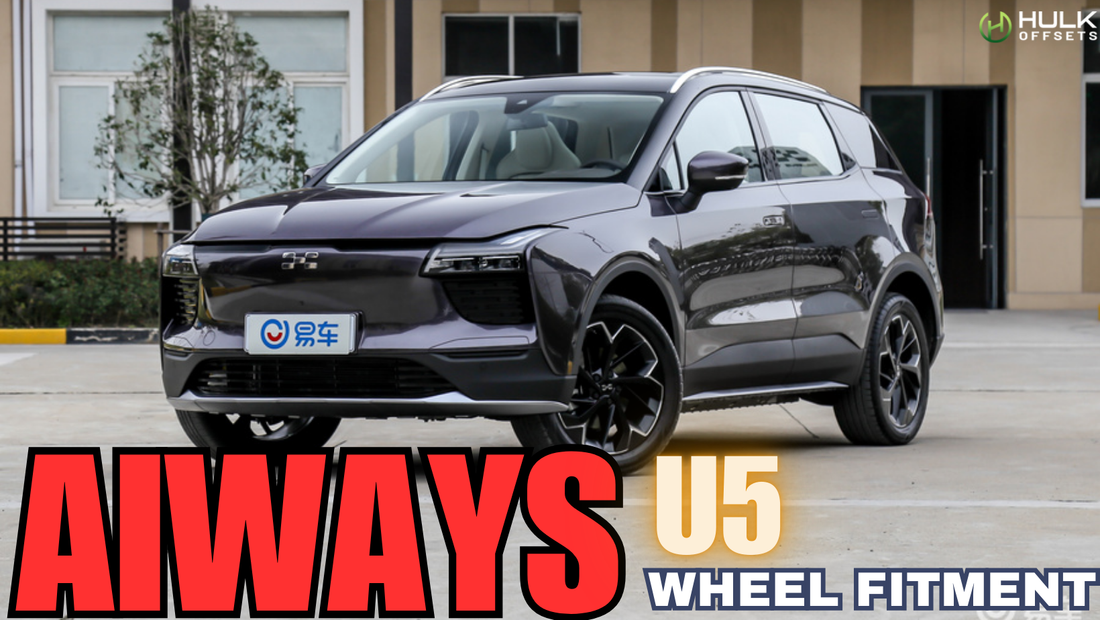

Aiways U5 Wheel Bolt Pattern, Rim Size, Hub Bore, Offsets And Tire Size

Introduction

Rolling with an Aiways U5 means you are driving one of the most forward-looking electric SUVs to leave China in recent years. However, getting the fitment perfect is vital if you intend to change the wheels for a new appearance or improved performance. The incorrect configuration might compromise handling, comfort, and even battery range health. This book will help you to tune it in exactly.

Though Aiways has been somewhat consistent with the U5's design from 2020 through 2026, it is nevertheless crucial to know the finer points year by year. From bolt pattern and hub bore to offset and tire sizes, every tiny measurement counts in determining that safe, clean fit.

Whether you keep things OEM or are ready to bolt on a fresh set of custom wheels, we will break out what you need to know for every model year. There is no complex jargon; only plain information to enable you to decide what action best suits your U5. This book covers everything from adding aggressive styling to enhancing handling to maintaining that efficiency dial.

Let's get right to the nitty-gritty so you can dream or buy knowing exactly what suits your AIways U5 from 2020 to 2026.

Wheel Specifications Overview (2020–2026)

When it comes to wheels, the Aiways U5 has stayed to a consistent, sensible base during all manufacturing years. Common among European automobiles, the classic 5x112 bolt pattern is easy to find compatible aftermarket choices. The hub bore is constant at 57.1 mm, hence any wheel you choose should either match that or use appropriate hub-centric rings to prevent vibration at speed.

Depending on the style and package you chose, the manufacturer's choices for rim sizes ranged from 17 to 19 inches. While the premium, prime, and Xcite trims gained beefier 19s for a sharper, sportier look, many base cars came with 17s. Regarding tire sizes, the smaller rims ran from 215/65R17, and the larger wheels ran from 235/50R19.

Usually falling between ET38 and ET45, offset—which indicates how far the wheel sits inward or outward—determines Without pushing the wheels too far out or tucking them awkwardly in, this range hits a solid mix between stability and attractive looks.

Although this basis remains mostly the same between 2020 and 2026, we will discuss some minor variations and cuts that might influence your decisions when we dissect it year by year.

2020 Aiways U5 Fitment Specs

Popular among many European-style cars, the 2020 Aiways U5 runs a 5x112 bolt pattern. If you're considering upgrading, this arrangement allows you a vast array of aftermarket wheels. Maintaining the right pattern will help you avoid any odd fitting problems or wobbling down the road.

Starting with 17-inch alloys for the Standard versions, factory rims for 2020 matched 215/65R17 tires. Matching 235/50R19 rubber, the Premium grades moved items up to 19-inch wheels. Thanks to a smaller sidewall height, the bigger arrangement not only offered the U5 a more aggressive posture but also somewhat enhanced handling.

ET38 and ET45 form the offset range for the 2020 U5. Staying within this offset guarantees that, should you intend to improve, you won't stress the suspension components or rub your fenders. You want a flush fitment look? A somewhat smaller offset, like ET38, will push the wheels out just a touch without increasing risk.

The 2020 U5 hub bore is 57.1 mm. Always be sure any aftermarket wheel you purchase either fits this or employs hub-centric rings. A smooth ride depends on it, particularly in an electric SUV where interior quietness is even more important.

Your rim choice will determine whether you use 235/50R19 for the 19-inch configuration or 215/65R17 for the 17-inch wheels. Both configurations preserve the right rolling diameter, ensuring the accuracy of your speedometer and the best range.

2021 Aiways U5 Fitment Specs

Not changing in 2021—the 5x112 bolt pattern stays constant. That's great news since it means all 2020 aftermarket wheel options still apply without any trouble. Simple swaps if you intend an upgrade.

The 2021 model still comes with 19- and 17-inch factory rims. But drivers who chose with 19s often experienced a somewhat tighter steering feel, particularly at higher speeds, with the performance enhancements Aiways brought in 2021.

Offset stayed in ET38 through ET45. If you're going bold in style, try to be safe for daily use by aiming for the lower side of that spectrum for a broader stance.

Just as before—57.1 mm hub bore. Get a premium hub-centric ring set to eliminate steering wheel shaking at highway speeds if you're recycling old wheels from a prior car with a different bore.

Recommendations on tire size stayed solid in 2021. Maintaining ride comfort, efficiency, and speedometer accuracy, you will want 215/65R17 for 17-inch wheels or 235/50R19 for the 19-inch stock combination.

2022 Aiways U5 Fitment Specs

Aiways once more maintained things similar in 2022 with a 5x112 bolt pattern. Wheel upgrades were quite easy because of this consistency, without looking for adapters or specific kits.

Styling stayed mostly unaltered while the U5 received improvements including a stronger inbuilt charger in 2022. Still the major options were 17-inch and 19-inch factory wheels, allowing drivers to give ride comfort or a sportier look first priority.

The range of wheel offset stayed frozen between ET38 and ET45. This explains why the U5 handled so consistently—this offset range balances curb appeal with steadiness.

If you acquired new wheels, maintaining an eye on hub-centric compatibility was still essential to avoiding any unpleasant vibrations since the hub bore continued at 57.1 mm.

Depending on your trim, the advised tire widths for 2022 did not change either: continue with 215/65R17 for stock 17-inch wheels or 235/50R19 for the 19-inch wheels.

2023 Aiways U5 Fitment Specs

The 2023 versions kept the 5x112 bolt pattern. They maintained the proven wheel configuration even with the new XCITE and PRIME grades showing up, therefore ensuring loads of compatibility with current wheels and accessories.

While the PRIME trim sought 19-inch wheels to match its higher-end vibe, the XCITE trim frequently leaned toward 17-inch setups to keep costs and weight down. Still, you could easily trade between sizes without greatly compromising your ride dynamics.

Still, the name of the game was offset between ET38 and ET45. This range maintained the U5 steady under vigorous driving, whether you stayed stock or went a little more aggressive without running the danger of fender rubbing.

Not changed—the hub bore at 57.1 mm looked good. Good things always kept steady; nobody wants the trouble of looking for sporadic fits year to year.

Tires matched past years in terms of formula: 235/50R19 for 19s and 215/65R17 for 17s. Simple, dependable, and made tire buying easy.

2024 Aiways U5 Fitment Specs

Entering 2024, the U5 maintained its tried-and-true 5x112 layout despite production difficulties developing behind the scenes. It helped maintain aftermarket support even as manufacturing slowed down.

By now, the pricier versions boldly rode the 19-inch alloys, while 17-inch wheels were typically on the entry-level cars. They never cut corners on appearance or performance when it came to their wheels, even with internal corporate challenges.

The range of offset stayed ET38 to ET45. Even aftermarket wheel builders kept creating sets aimed at this sweet spot since they fit the U5's chassis design so perfectly.

Again the hub bore 57.1 mm. Many other EV firms simply make haphazard tweaks that drive people crazy; that consistency year over year is something you simply do not see with many others.

Likewise, as before: 235/50R19 for 19-inchers and 215/65R17 for 17-inch wheels. Maintaining constant tire size made upgrading, rotating, or even locating winter tires simple and free from any drama straightforward.

2025–2026 AIWAYS U5 Fitment Forecast

Assuming no major chassis rework, future U5 models for 2025 and 2026 are projected to maintain the same wheel dimensions as Aiways restructures and refocuses their offering. Usually, except absolutely necessary, engineers do not tamper with a platform that has shown to be dependable.

The 5x112 bolt pattern will be here to stay. It's too compatible with the aftermarket used in Europe to be altered currently.

Standard wheels for both budget-conscious consumers and those seeking a little extra curb appeal will probably stay 17-inch and 19-inch sizes.

With tire sizes of 215/65R17 and 235/50R19 and a seamless balance between ride quality, style, and electric efficiency, offsets from ET38 to ET45 will most certainly be used.

Always U5 Wheel Fitment Specifications (2020 – 2026)

Upgrading Your AIWAYS U5 Wheels

Changing your wheels will help your Aiways U5 have a better posture, smoother ride, or just a meaner appearance. It's not as easy as just grabbing a fresh set from a friend's garage, though; you have to be careful with specs to avoid messing with handling, range, or even safety.

First, lock in the fundamentals: your safe offset range is between ET38 and ET45, your bolt pattern is 5x112, and your hub bore is 57.1 mm. These measurements make sure your new wheels won't tuck too far in (which would strain your suspension) or sit too far out (which could rub your fenders). Keep to wheels designed for this range to prevent issues down the road.

Your driving demand will determine whether you want to scale up or down. Want efficiency and ease of use? Stay with 17-inch wheels and match them with 215/65R17 tires. Search for something that accentuates the bends and turns heads? Running 235/50R19 tires, choose 19-inch wheels. Just keep the general rolling diameter near stock to prevent your speedometer from beginning to lie to you.

For those who enjoy aftermarket brands, designs from BBS, OZ Racing, and Rohana are excellent and also fit quite well. Search for lightweight wheels; these will extend your battery range more effectively than heavy cast substitutes. It's all about adjusting the form and function balance for your ride to be exactly right.

Final Fitment Tips

Spend a minute double-checking the figures before you mark "buy" on that new set of wheels. Better performance, smoother ride quality, and a lot less road trouble down-stream follow from a precise fit. Simple 5x112 bolt pattern, 57.1 mm hub bore, and ET38–ET45 offset makes your Aiways U5 the golden recipe. Add that to either a 215/65R17 or 235/50R19 tire to be good.

If you're aiming to achieve a specific stance or vary in size and want a handy tool, fitment calculators are With a new offset or rim width, they help forecast how much poke or tuck you will get, so preventing unpleasant surprises following installation.

If you're entering the aftermarket area, also be sure not to overlook excellent hardware; balanced tires, appropriate lug nuts or bolts, and solid hub-centric rings can either make or ruin your modification. Would you like to run spacers or go wide? See a wheel shop knowledgeable about EVs; not every configuration is made equal.

Basically, getting your wheel fitting correct on the Aiways U5 is about keeping your SUV riding clean, safe, and effectively, not only about appearances. Treat it correctly, and each time you drive it will pay back the favor.

Conclusion

Though the Aiways U5 might be a modern EV, the fundamentals still apply—get the specs right, and everything else falls into place—wheels and fitting. Whether you drive a 2020 model or one of the more recent 2026 editions, the basic measurements have remained constant, making maintenance or upgrading your configuration simpler without second-guessing every element.

Aiways made sure the U5 had a robust foundation fit for many of aftermarket options from the 5x112 bolt pattern and 57.1 mm hub bore to the dependable ET38–ET45 offset range. Factory wheels available in 17- or 19-inch diameters, and matched tires that perfectly blend range, comfort, and performance.

Although upgrading your wheels can definitely improve the handling and appearance of your U5, it's more about picking wise decisions that honor the engineering of your car than about hatching the trendiest set online. Follow the advised fitment requirements; verify your clearances; and, in doubt, see a professional.

Proper wheel fitment is where it all starts, whether your goals are improved road grip, more elegant appearance, or just a little bit of personalizing to make your U5 feel more like your own. Go slowly, measure twice, and roll out with confidence—because everything feels better on the road when your wheels fit just right.
